Description

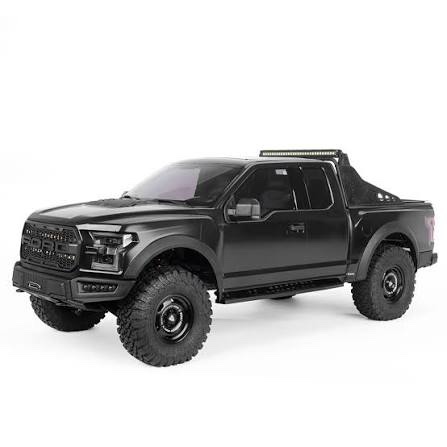

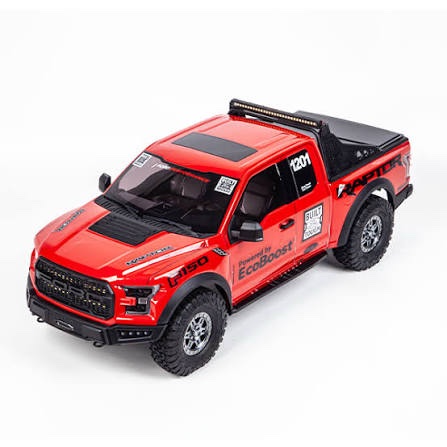

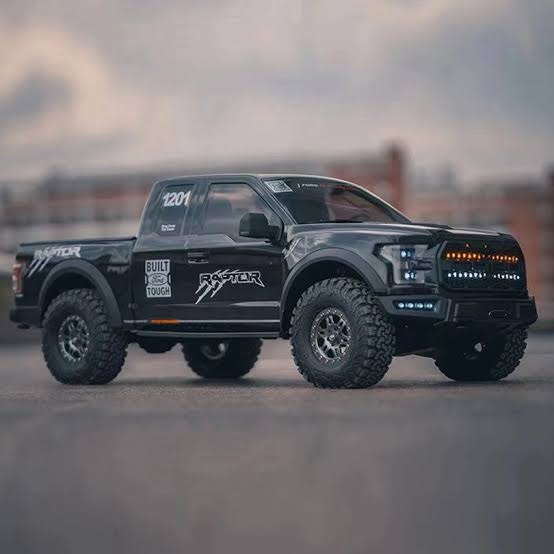

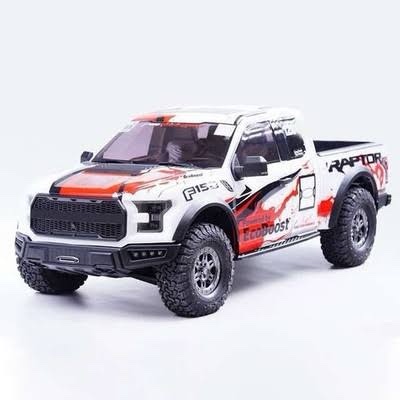

The Traction Hobby 1/6 scale Ford F-150 is a large-scale radio-controlled crawler with dimensions of approximately 690mm x 285mm x 255mm and a 421mm wheelbase. Key specs include a 1.5mm steel C-channel frame, all-metal portal axles with a simulated front and rear diff lock, a two-speed transmission, a standard RS775 motor or an optional 1:8 brushless motor, and the ability to run on 2S-4S LiPo batteries.
General
- Dimensions: 690mm (L) x 285mm (W) x 255mm (H)
- Wheelbase: 421mm
- Wheel Track: 234mm
- Ground Clearance: 39mm
- Chassis: 1.5mm formed steel C-channel frame
- Body: Authorized Ford F-150 simulation with detailed parts like a light group, wiper, and door handles
-
Drivetrain
- Motor: Standard RS775 motor (21000 RPM) or optional 1:8 brushless motor
-
- Transmission: Integrated two-speed, 4WD, reverse, front/rear drive
-
- Differential: Supports front/rear differential lock via servo control
-
- Drive: Switchable between 2WD, 4WD, front drive, and rear drive
-
Suspension and steering
- Suspension: Full aluminum alloy front and rear portal axles
- Shocks: Adjustable negative pressure full metal shocks (87mm front / 102mm rear)
- Servo: High voltage digital steering servo
-
Electronics and power
- ESC: WP880 (BEC 7.4V)
- Battery: Supports 2S-4S LiPo batteries (Max size: 150mm x 46mm x 40mm)
- Radio: FS-G7P 7-channel radio system
- Lights: Includes a simulation light set
-
Wheels and tires
- Tires: 2.2-inch all-terrain tires (120mm diameter x 42mm width)
- Wheels: CNC aluminum wheels
- Spare: Full-size spare tire included
-
